  • Lignostation

     Lintab Tree Ring Analysis Station

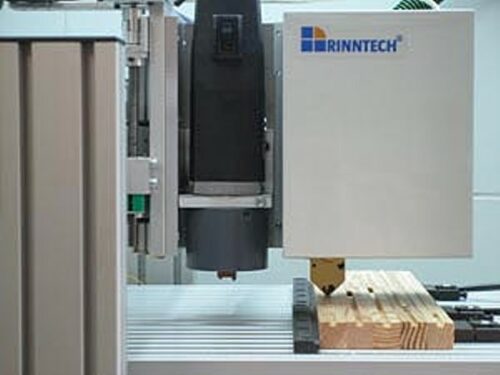

    LIGNOSTATION™ is a compact, high-resolution system for preparing wood surfaces and recording the tree ring parameters and the wood density. LIGNOSTATION™, developed in cooperation with the University of Freiburg, is based on an entirely novel concept.

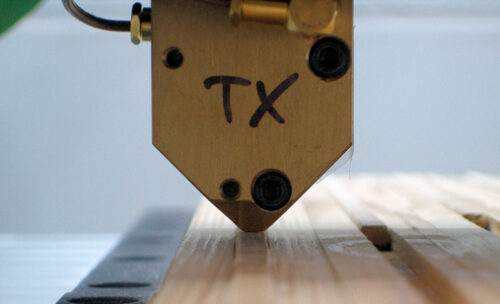

    A precision mill prepares the measuring radii on the wood surface. Then, precise scans are obtained using a high-frequency probe. At the same time, optical scans of the surface can be made and analyzed in comparison with the image. The entire system is computer-controlled and relieves you of a great deal of time-consuming routine tasks. You attach the sample, define the measuring radius on the PC screen, and LIGNOSTATION™ will do the rest, from preparation up to measurement. You can fully concentrate on the scientific evaluation.

    Applications

    • Dendrochronology
    • Density measurement
    • Dendroecology
    • Dendroclimatology
    • Forestry
    • Geography

  • Lignovision

     Lintab Tree Ring Analysis Station

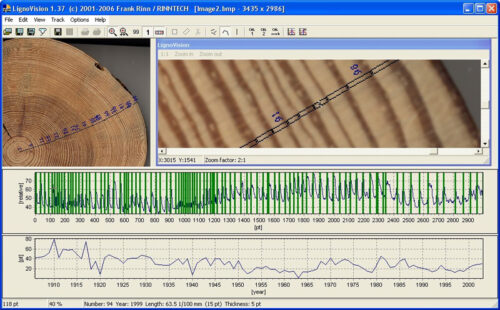

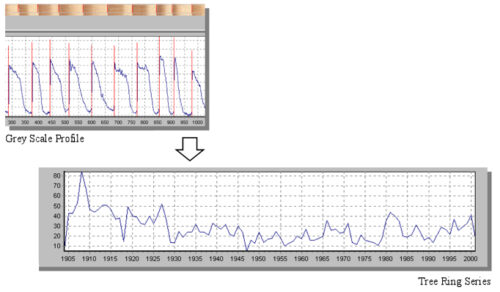

    LIGNOVISION™ automatically detects the tree rings of softwoods and some deciduous/foliage trees, thus it takes care of a great portion of your routine work for you, and saves a lot of time. In addition to the width of the tree rings, early wood and autumn wood are also automatically detected. Most high-resolution scanners or distortion-free digital photographs can be used for data recording.

    Where automatic tree ring detection is no longer possible, the tree ring limits can be manually defined, or errors can be edited in an interactive process. Even density variables can be recorded based on X-ray pictures once the gray levels have been calibrated. LIGNOVISION™ stores the data in the TSAP-Win™ format. You can start analyzing your material immediately. In addition to the measured data, surface scans including the measured traces can be stored.

  • Lintab Tree Ring Analysis ToolLintab Tree Ring Station

    Lintab 6 Tree Ring Analysis Station (Expert Model – Higher resolution and sensitivity for narrow rings)

     Lintab Tree Ring Analysis Station

    Measuring tree rings requires high precision and a reliable method of measuring. LINTAB™ easily meets these requirements, and is furthermore easy to handle, ergonomic, robust and weatherproof. Both cookies (cross section, disc, disk, stem disc, transverse section) and cores can be measured. Together TSAP-Win™ and LINTAB™ are a strong team for analyzing tree rings.

    Applications
    •Dendrochronology
    •Stem analysis
    •Ecological and geo-morphological analyses
    •Vitality and damage analysis of road trees

  • Lintab Tree Ring Analysis ToolLintab Tree Ring Station

    Lintab 6 Tree Ring Analysis Station (Professional model)

     Lintab Tree Ring Analysis Station

    Measuring tree rings requires high precision and a reliable method of measuring. LINTAB™ easily meets these requirements, and is furthermore easy to handle, ergonomic, robust and weatherproof. Both cookies (cross section, disc, disk, stem disc, transverse section) and cores can be measured. Together TSAP-Win™ and LINTAB™ are a strong team for analyzing tree rings.

    Applications
    •Dendrochronology
    •Stem analysis
    •Ecological and geo-morphological analyses
    •Vitality and damage analysis of road trees

  • Lintab Tree Ring Analysis ToolLintab Tree Ring Station

    Lintab 6 Tree Ring Analysis Station (Scientific Model – Highest resolution and sensitivity)

     Lintab Tree Ring Analysis Station

    Measuring tree rings requires high precision and a reliable method of measuring. LINTAB™ easily meets these requirements, and is furthermore easy to handle, ergonomic, robust and weatherproof. Both cookies (cross section, disc, disk, stem disc, transverse section) and cores can be measured. Together TSAP-Win™ and LINTAB™ are a strong team for analyzing tree rings.

    Applications
    •Dendrochronology
    •Stem analysis
    •Ecological and geo-morphological analyses
    •Vitality and damage analysis of road trees

  • Placeholder

    Lintab,Series 6,Standard Package

     Lintab Tree Ring Analysis Station

    Measuring tree rings requires high precision and a reliable method of measuring. LINTAB™ easily meets these requirements, and is furthermore easy to handle, ergonomic, robust and weatherproof. Both cookies (cross section, disc, disk, stem disc, transverse section) and cores can be measured. Together TSAP-Win™ and LINTAB™ are a strong team for analyzing tree rings.

    Applications
    •Dendrochronology
    •Stem analysis
    •Ecological and geo-morphological analyses
    •Vitality and damage analysis of road trees

  • Resistograph Series 6

    Resistograph R650-EA (Standard, Temperate Trees & Timber Inspection)

     Resistograph R650 Series - for Tree and Timber Structure Analysis
    • Recording resistance drilling machine with electronics
      -Internal Memory for 10,000 drillings x 50cm =5km
      -Automatically maximized thrust up to 2cm/sec
      -25 measured values per millimeter(10Bit)
      -ANDROID-APP(Graph,Position,GPS….)
    • 1  Tool Kit
    • 2  Battery pack (~50-100 drillings)
    • 1 Battery charger
    • 1 USB Cable
    • 1 Thermal printer 57mm,Bluetooth
    • 10 Drilling needles R06(each ~200 drillings)
    • 10 rolls of Printer paper 12m
    • 1 DECOM Pro WIN-PC-Program
    • 1 Carrying case for complete system
    • 1 Carrying strap
    • 20 times Consulting Measurement Evaluation Assistant

    After extensive research and development, Frank Rinn and Rinntech have improved all aspects of the new Resistograph.

    • Android app allows for realtime measurement display on any smartphone or tablet PC that supports android (additional option of “remote control” by phone or tablet)
    • Stonger – Capable of drilling even the highest density trees
    • It now can drill to 50cm depth (optional up to 1 meter depth)
    • Transparent cover allows the user to see the drilling needle at all times to avoid potential damage and for easy cleaning
    • Drilling needle can easily be changed in any position
    • Internal memory for more than 10,000 drilling profiles
    • Complete automatic, electronically controlled motor to produce optimized measurements for ANY wood density (hard or soft wood).This is highly important as “manual” thrust control tends to produce unreliable, uncomparable measurements
    • Special “long life” drilling needles for prolonged usage and less breakage, especially for tropical high density trees (up to 200 drillings depending on density)
    • The scientific model even allows for “absolute wood density” measurement, utilizing special calibration capabilities and special needles
    • Bluetooth wireless thermal printer with 1:1 printout for easy direct comparison to what is being measured. More useful than any low-resolution electronic display
    • Comes with 2 batteries, easily charged in a vehicle, batteries last for appox. 50-100 drillings before recharge
  • Resistograph Series 6

    Resistograph R650-ED (High Strength, Tropical Tree & Timber Inspection)

     Resistograph R650 Series - for Tree and Timber Structure Analysis
    • Recording resistance drilling machine with electronics
    • Internal Memory for 10,000 drillings x 50cm
    • Automatically maximized thrust up to 2cm/sec
    • 25 measured values per millimeter(10Bit)
    • Androi App (Graph,Position,GPS….)
    •  1 Version for high-density (tropical)hardwoods
    • 1  Tool Kit
    • 2  Battery pack (~50-100 drillings)
    • 1 Battery charger
    • 1 USB Cable
    • 1 Thermal printer 57mm, Bluetooth
    • 10 Drilling needles R06(each ~200 drillings)
    • 10 rolls of Printer paper 12m
    • 1 DECOM Pro WIN-PC-Program
    • 1 Carrying case for complete system
    • 1 Carrying strap
    • 20 times Consulting Measurement Evaluation Assistant

    After extensive research and development, Frank Rinn and Rinntech have improved all aspects of the new Resistograph.

    • Android app allows for real-time measurement display on any smartphone or tablet PC that supports android (additional option of “remote control” by phone or tablet)
    • Stronger – Capable of drilling even the highest density trees
    • It now can drill to 50cm depth (optional up to 1 meter depth)
    • Transparent cover allows the user to see the drilling needle at all times to avoid potential damage and for easy cleaning
    • Drilling needle can easily be changed in any position
    • Internal memory for more than 10,000 drilling profiles
    • Complete automatic, electronically controlled motor to produce optimized measurements for ANY wood density (hard or soft wood). This is highly important as “manual” thrust control tends to produce unreliable, incomparable measurements
    • Special “long life” drilling needles for prolonged usage and less breakage, especially for tropical high density trees (up to 200 drillings depending on density)
    • The scientific model even allows for “absolute wood density” measurement, utilizing special calibration capabilities and special needles
    • Bluetooth wireless thermal printer with 1:1 printout for easy direct comparison to what is being measured. More useful than any low-resolution electronic display
    • Comes with 2 batteries, easily charged in a vehicle, batteries last for appox. 50-100 drillings before recharge
  • Resistograph Series 6Resistograph Interface

    Resistograph R650-PR (Timber Inspection)

     Resistograph R650 Series - for Tree and Timber Structure Analysis
    • Recording resistance drilling machine with electronics
      -Internal Memory for 10,000 drillings x 50cm =5km
      -Automatically maximized thrust up to 2cm/sec
      -25 measured values per millimeter(10Bit)
      -ANDROID-APP(Graph,Position,GPS….)
    • 1  Tool Kit
    • 2  Battery pack (~50-100 drillings)
    • 1 Battery charger
    • 1 USB Cable
    • 10 Drilling needles R06(each ~100 drillings)
    • 10 rolls of Printer paper 12m
    • 1 DECOM Pro WIN-PC-Program
    • 1 Carrying case for complete system
    • 1 Carrying strap
    • 10 times Consulting Measurement Evaluation Assistant

    After extensive research and development, Frank Rinn and Rinntech have improved all aspects of the new Resistograph.

    • Android app allows for realtime measurement display on any smartphone or tablet PC that supports android (additional option of “remote control” by phone or tablet)
    • Stonger – Capable of drilling even the highest density trees
    • It now can drill to 50cm depth (optional up to 1 meter depth)
    • Transparent cover allows the user to see the drilling needle at all times to avoid potential damage and for easy cleaning
    • Drilling needle can easily be changed in any position
    • Internal memory for more than 10,000 drilling profiles
    • Complete automatic, electronically controlled motor to produce optimized measurements for ANY wood density (hard or soft wood).This is highly important as “manual” thrust control tends to produce unreliable, uncomparable measurements
    • Special “long life” drilling needles for prolonged usage and less breakage, especially for tropical high density trees (up to 200 drillings depending on density)
    • The scientific model even allows for “absolute wood density” measurement, utilizing special calibration capabilities and special needles
    • Bluetooth wireless thermal printer with 1:1 printout for easy direct comparison to what is being measured. More useful than any low-resolution electronic display
    • Comes with 2 batteries, easily charged in a vehicle, batteries last for appox. 50-100 drillings before recharge
  • Resistograph Series 6

    Resistograph R650-SC (Scientific, High Resolution, Tree & Timber Inspection)

     Resistograph R650 Series - for Tree and Timber Structure Analysis

    Each Resistograph model has a full set of

    • Scientific tree / timber examination
    • Recording resistance drilling machine with electronics
    • Internal Memory for 10,000 drillings x 50cm =5km
    • Automatically maximized thrust up to 2cm/sec
    • 25 measured values per millimeter(10Bit)
    • Android App (Graph,Position,GPS….)
    • 1 High-speed-drilling option 4cm/sec
    • 1 Version for high-density (&tropical)hardwoods
    • High-resolution measuring 100P/mm 12Bit
    • Calibration for absolute wood density assessment
    • 1  Tool Kit
    • 2  Battery pack (~50-100 drillings)
    • 1 Battery charger
    • 1 USB Cable
    • 1 Thermal printer 57mm, Bluetooth
    • 10 Drilling needles R06(each ~100 drillings)
    • 10 Drilling needles R06(each ~200 drillings)
    • 10 Drilling needles R06 density-calbration(~200 dr)
    • 10 rolls of Printer paper 12m
    • 1 DECOM Sci WIN-PC-Program
    • 1 Carrying case for complete system
    • 1 Carrying strap
    • 100 times Consulting Measurement Evaluation Assistant

    After extensive research and development, Frank Rinn and Rinntech have improved all aspects of the new Resistograph.

    • Android app allows for realtime measurement display on any smartphone or tablet PC that supports android (additional option of “remote control” by phone or tablet)
    • Stonger – Capable of drilling even the highest density trees
    • It now can drill to 50cm depth (optional up to 1 meter depth)
    • Transparent cover allows the user to see the drilling needle at all times to avoid potential damage and for easy cleaning
    • Drilling needle can easily be changed in any position
    • Internal memory for more than 10,000 drilling profiles
    • Complete automatic, electronically controlled motor to produce optimized measurements for ANY wood density (hard or soft wood).This is highly important as “manual” thrust control tends to produce unreliable, uncomparable measurements
    • Special “long life” drilling needles for prolonged usage and less breakage, especially for tropical high density trees (up to 200 drillings depending on density)
    • The scientific model even allows for “absolute wood density” measurement, utilizing special calibration capabilities and special needles
    • Bluetooth wireless thermal printer with 1:1 printout for easy direct comparison to what is being measured. More useful than any low-resolution electronic display
    • Comes with 2 batteries, easily charged in a vehicle, batteries last for appox. 50-100 drillings before recharge
